Add-On Fittings for Rowland Emergency's Oxygen 'D' Tank Regulator

Designed for seamless integration with Rowland Emergency's Oxygen 'D' Tank Regulator, these add-on fittings ensure reliable and efficient oxygen delivery in emergency situations.

Intended Use: Enhances the functionality and connectivity of the Oxygen 'D' Tank Regulator in ambulances.

Benefits:

• Enhanced Compatibility: Fits securely with Rowland Emergency's Oxygen 'D' Tank Regulator.
• Durable Construction: Built to withstand the rigors of emergency environments.
• Easy Installation: User-friendly design for quick and efficient setup and adjustments.

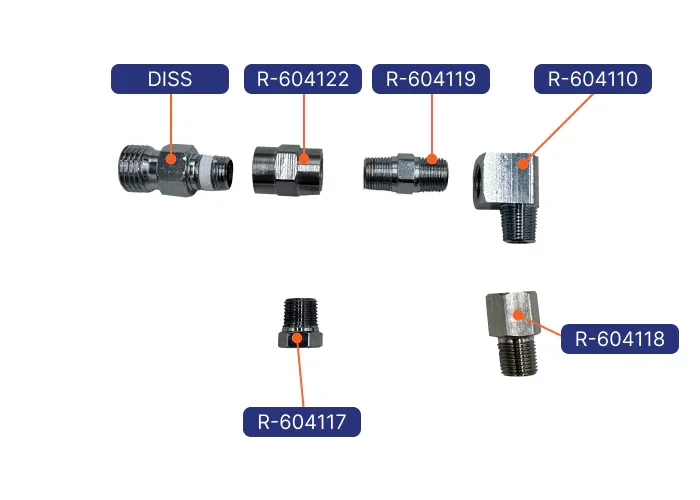

Add-On Fittings:

• R-604110 (1): Fitting Oxygen Elbow 90 1/8" F x 1/8" M
• R-604117 (1): Fitting Oxygen Plug 1/8"
• R-604118 (1): Fitting Oxygen Connector 1/8" FNPT x 1/8" MNPT
• R-604122 (1): Oxygen Coupler Fitting, 1/8" FNPT x 1/8" FNPT
• R-604119 (1): Oxygen Hex Nipple Fitting 1/8" MNPT x 1/8" MNPT

Instructions:

• Thread Preparation:
  Apply Teflon tape to all oxygen fitting threads prior to assembly to ensure proper sealing and prevent leakage.


• Replace First DISS Fitting:
  Remove the existing DISS fitting and replace it with R-604117 – Oxygen Plug Fitting, 1/8”.


• Replace Second DISS Fitting:
  Remove the second DISS fitting and install R-604118 – Oxygen Hex Nipple Fitting, 1/8" NPT

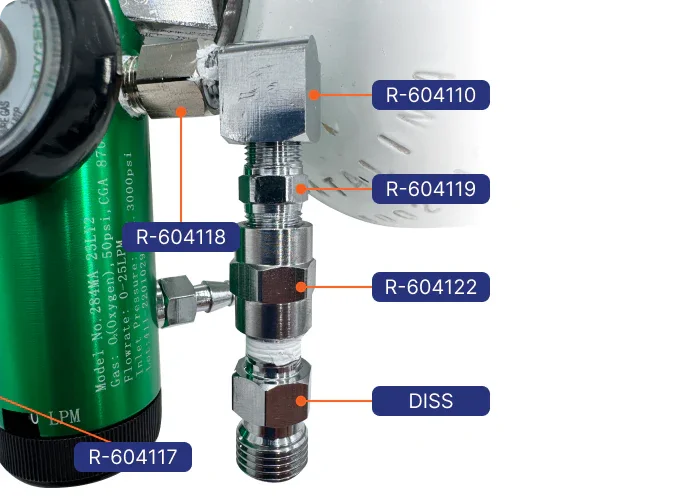

• Install Additional Fittings (In Order):
  • R-604110: Oxygen Elbow Fitting 90 1/8"F x 1/8"M
  • R-604119: Oxygen Hex Nipple Fitting 1/8" MNPT x 1/8" MNPT

  • R-604122: Oxygen Coupler Fitting, 1/8" FNPT x 1/8" FNPT
• Reinstall the original DISS fitting that was supplied with the regulator.

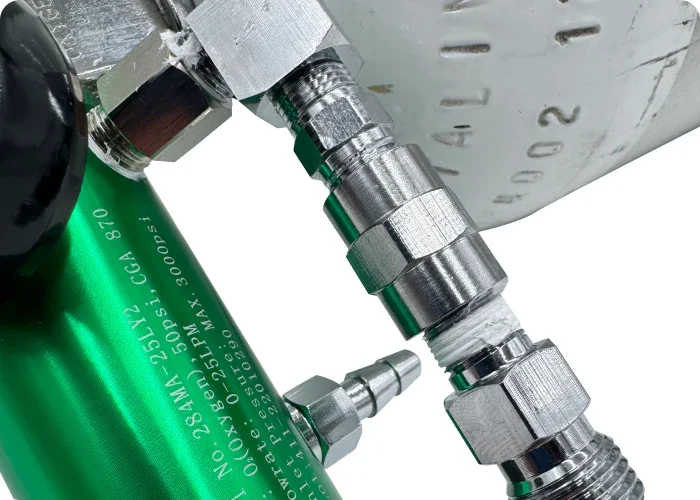

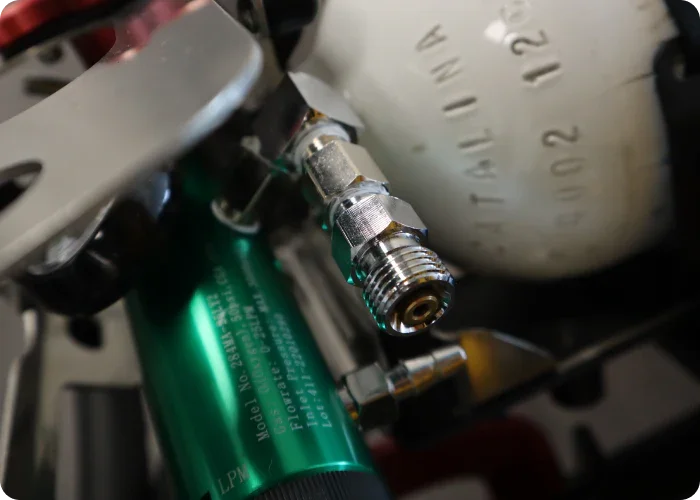

• Please refer to the provided images for detailed orientation and placement of each component.

Tools Required

• Teflon Tape
• 1/2" Wrench
• 9/16" Wrench
• 7/16" Wrench
